8412 NG | ebm-papst
DC axial fan, 12 V, 80 x 80 x 25 mm, 69 m³/h, 32 dB, sintec slide bearing, ebm-papst 8412 NG
Unit Price (€ / pc.)
25.2280 € *
Next delivery: 50 pcs. on 2025-09-19
Total Price:
25.23 € *
Price list
Quantity
Price per unit*
1 pcs.
25.2280 €
10 pcs.
22.9670 €
25 pcs.
20.8845 €
50 pcs.
18.9924 €
*incl. VAT plus shipping costs
Subject to prior sale

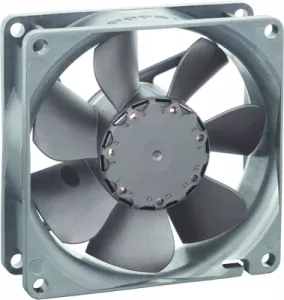

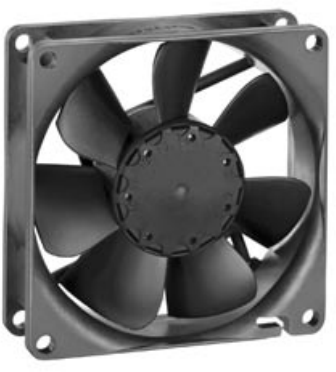

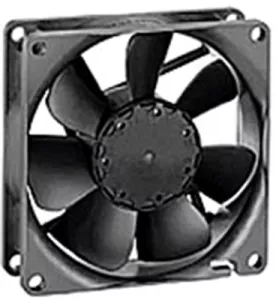

DC Axial fan, 8412 NG, EBM-PAPST
The 8412 NG axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Direction of rotation left, viewed on the rotor
- Protected against reverse polarity and blocking
- Material housing: glass fiber reinforced plastic (PBT)

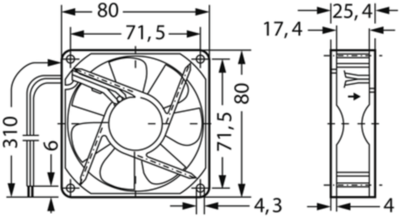

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 80 mm | |
| Height | 80 mm | |
| Depth | 25 mm | |
| Volume flow | 69 m³/h | |
| Sound pressure level | 32 db | |
| speed | 3100 1/min | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 2 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
