8318 | ebm-papst
DC axial fan, 48 V, 80 x 80 x 32 mm, 54 m³/h, 36 dB, ball bearing, ebm-papst 8318
This item is no longer available.
As an alternative, we recommend the following item:
DC axial fan, 48 V, 80 x 80 x 32 mm, 54 m³/h, 36 dB, ball bearing, ebm-papst 8318 NN
Order No.: 90B195
Manufacturer: ebm-papst
per pc. 66.6757 € *

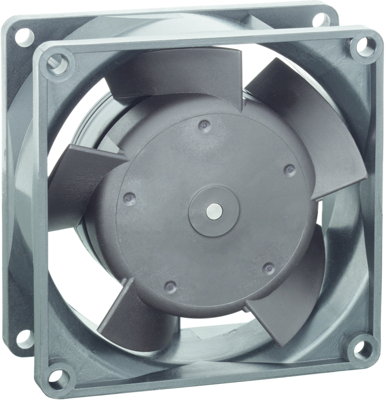

DC Axial fan, 8318, EBM-PAPST
The axial fan 8318 is suitable for high air flow rates at medium pressure build-up. The air is moved through the fan blades parallel to the rotational axis. Compact, quiet and highly efficient, the energy-saving fan adapt to cooling needs and can be intelligently networked with the device logic.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Electronic commutation completely integrated
- Direction of rotation right, viewed on the rotor
- Protected against reverse polarity and blocking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 48 V | |
| Width | 80 mm | |
| Height | 80 mm | |
| Depth | 32 mm | |
| Volume flow | 54 m³/h | |
| Sound pressure level | 36 db | |
| speed | 3300 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 3 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
