8315100163 | ebm-papst

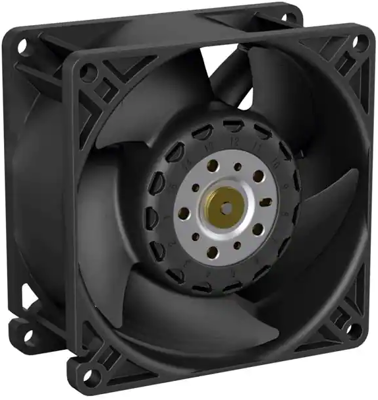

DC axial fan, 48 V, 80 x 80 x 38 mm, 204 m³/h, 71 dB, ball bearing, ebm-papst 8315100163
Order No.: 90B1236
EAN: 4099889572544
MPN:
8315100163
AF80-00163
Unit Price (€ / pc.)
84.7399 € *
Standard delivery time from the manufacturer is: 3 Weeks
DC Axial fan, 8315100163, ebm-papst
The 8315100163 is a AxiForce size 80 with new developed flow geometry, new three-phase motor concept and powerful electronics.
Features
- Tach output
- PWM control input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 48 V | |
| Width | 80 mm | |
| Height | 80 mm | |
| Depth | 38 mm | |
| Volume flow | 204 m³/h | |
| Sound pressure level | 71 db | |
| speed | 15500 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 39 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
