8315100126 | ebm-papst
DC axial fan, 48 V, 610 m³/h, 69 dB, ball bearing, ebm-papst 8315100126
Order No.: 90B1243
EAN: 4099889572575
MPN:
8315100126
AF172-00126
Unit Price (€ / pc.)
216.7347 € *
Standard delivery time from the manufacturer is: 3 Weeks

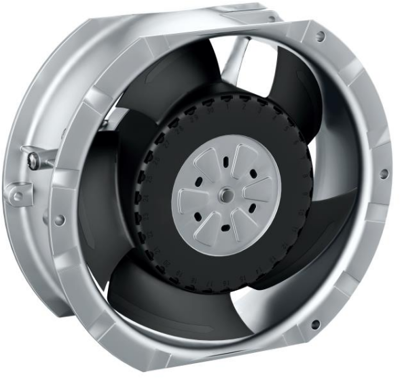

DC Axial fan, 8315100126, ebm-papst
The 8315100126 is a DC axial fan - max. 652 m³/h, 172 x 150 x 51 mm. Compact, powerful noise and efficiency optimized axial fan. Direction of rotation: counterclockwise, looking towards rotor.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Volume flow | 610 m³/h | |
| Rated voltage | 48 V | |
| Type of bearing | ball bearing | |
| Power consumption | 80 W | |
| Depth | 51 mm | |
| speed | 7800 1/min | |
| Width | 150 mm | |
| Sound pressure level | 69 db | |
| Version | DC axial fan |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
