8218 J/2 H4P | ebm-papst

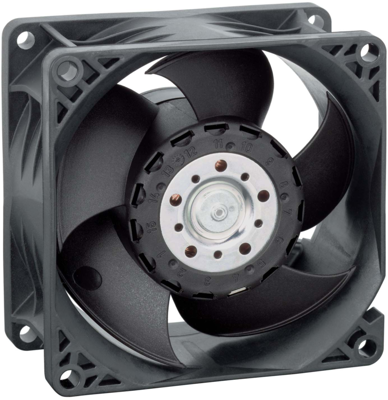

DC axial fan, 48 V, 80 x 80 x 38 mm, 222 m³/h, 71 dB, ball bearing, ebm-papst 8218 J/2 H4P

Order No.: 90B1862
EAN: 4099889482508
MPN:
8218 J/2 H4P
9692910189
Series: 8200 JH
8218 J/2 H4P ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
56.3703 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
2,818.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
56.3703 €

DC Axial fan, 8218 J/2 H4P, EBM-PAPST

The 8218 J/2 H4P is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • Max. torque when mounted across both mounting wire outlet corner is 50 Ncm
  • Insulation diameter 1,30 mm
Technical specifications
Version DC axial fan
Rated voltage 48 V
Width 80 mm
Height 80 mm
Depth 38 mm
Volume flow 222 m³/h
Sound pressure level 71 db
speed 13000 1/min
Type of bearing ball bearing
Power consumption 37 W
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
