712 F | ebm-papst
DC axial fan, 12 V, 70 x 70 x 15 mm, 44 m³/h, 38 dB, sintec slide bearing, ebm-papst 712 F
Unit Price (€ / pc.)
40.2101 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
40.21 € *
Price list
Quantity
Price per unit*
1 pcs.
40.2101 €
10 pcs.
37.7111 €
*incl. VAT plus shipping costs
Subject to prior sale

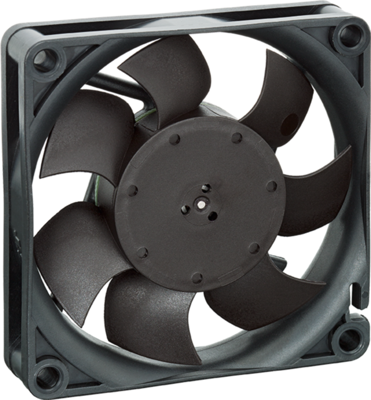

DC Axial fan, 712 F, EBM-PAPST
The 712 F is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 70 mm | |
| Height | 70 mm | |
| Depth | 15 mm | |
| Volume flow | 44 m³/h | |
| Sound pressure level | 38 db | |
| speed | 3300 1/min | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 1.7 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
