7114 NH | ebm-papst

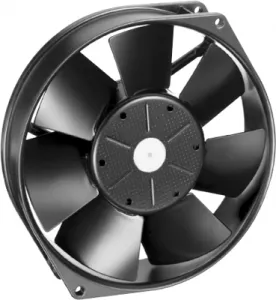

DC axial fan, 24 V, 150 x 150 x 38 mm, 360 m³/h, 58 dB, ball bearing, ebm-papst 7114 NH
Unit Price (€ / pc.)
152.9626 € *
Available: 45 pcs.
Leadtime: 8 Weeks **
Total Price:
152.96 € *
Price list
Quantity
Price per unit*
1 pcs.
152.9626 €
3 pcs.
148.3692 €
10 pcs.
143.2760 €
25 pcs.
139.4561 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 7114 NH, EBM-PAPST
The 7114 NH is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- Material housing: aluminum die casting
Technical specifications
| Version | DC-Axiallüfter | |
| Rated voltage | 24 V | |

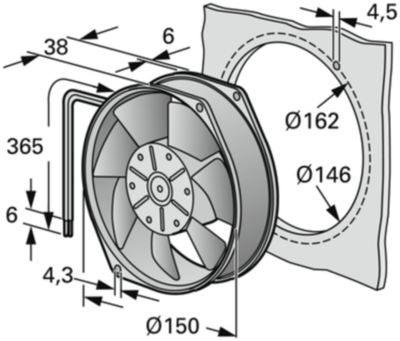

| Width | 150 mm | |
| Height | 150 mm | |
| Depth | 38 mm | |
| Volume flow | 360 m³/h | |
| Sound pressure level | 58 db | |
| speed | 3350 1/min | |
| Type of bearing | Kugellager | |
| Power consumption | 19 W |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
