6424 | ebm-papst

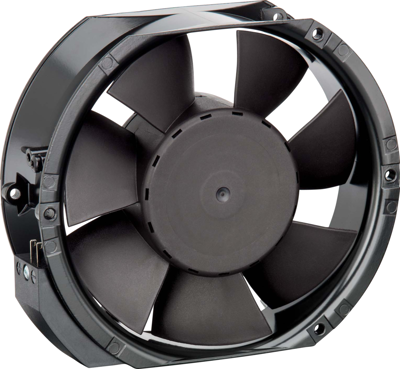

DC axial fan, 24 V, 172 x 150 x 51 mm, 410 m³/h, 57 dB, ball bearing, ebm-papst 6424
Unit Price (€ / pc.)
194.5769 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
194.58 € *
Price list
Quantity
Price per unit*
1 pcs.
194.5769 €
3 pcs.
188.7340 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 6424, EBM-PAPST
The axial fan 6424 is suitable for high air flow rates at medium pressure build-up. The air is moved through the fan blades parallel to the rotational axis. Compact, quiet and highly efficient, the energy-saving fan adapt to cooling needs and can be intelligently networked with the device logic.
Features
- Electronic anti-lock device, with electronic motor current limitation in the start-up phase and when the rotor is locked
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- Material housing: metal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 172 mm | |
| Height | 150 mm | |
| Depth | 51 mm | |
| Volume flow | 410 m³/h | |
| Sound pressure level | 57 db | |
| speed | 3400 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 17 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
