6224 N | ebm-papst
DC axial fan, 24 V, 172 x 172 x 51 mm, 410 m³/h, 55 dB, ball bearing, ebm-papst 6224 N
Unit Price (€ / pc.)
128.3296 € *
Available: 6 pcs.

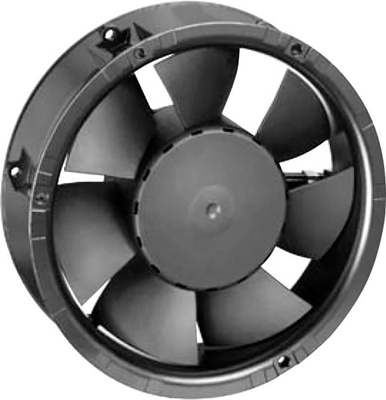

DC Axial fan, 6224 N, EBM-PAPST
The 6224 N is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Electronic commutation completely integrated
- Protected against polarity reversal and blocking
- Electrical connection to 3 x 0.5 mm bottle plugs. Optional: version with stranded wires
- Direction of rotation left, viewed on the rotor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 172 mm | |
| Height | 172 mm | |
| Depth | 51 mm | |
| Volume flow | 410 m³/h | |
| Sound pressure level | 55 db | |
| speed | 3400 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 18 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
