622/2 H3P | ebm-papst
DC axial fan, 12 V, 60 x 60 x 25 mm, 67 m³/h, 48 dB, ball bearing, ebm-papst 622/2 H3P
Unit Price (€ / pc.)
30.9281 € *
Standard delivery time from the manufacturer is: 8 Weeks

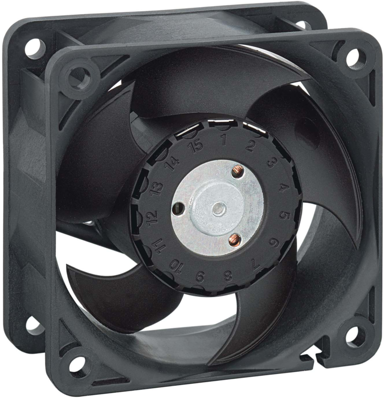

DC Axial fan, 622/2 H3P, EBM-PAPST
The 622/2 H3P is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation right, viewed on the rotor
- Conveying direction blowing over bars
- Max. torque when mounted across both mounting wire outlet corner is 10 Ncm
- Insulation diameter 1,5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 25 mm | |
| Volume flow | 67 m³/h | |
| Sound pressure level | 48 db | |
| speed | 9700 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 5.5 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
