614 JH | ebm-papst
DC axial fan, 24 V, 60 x 60 x 32 mm, 70 m³/h, 53 dB, ball bearing, ebm-papst 614 JH
Unit Price (€ / pc.)
67.7943 € *
Available: 131 pcs.
Total Price:
67.79 € *
Price list
Quantity
Price per unit*
1 pcs.
67.7943 €
5 pcs.
63.7364 €
15 pcs.
61.2850 €
50 pcs.
58.5837 €
150 pcs.
56.1442 €
*incl. VAT plus shipping costs
Subject to prior sale

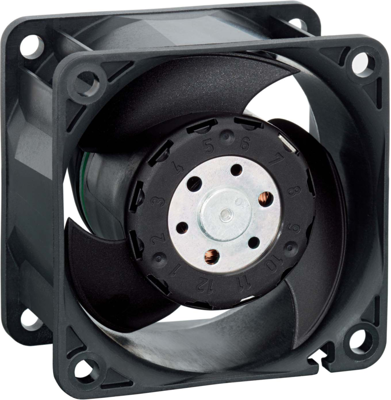

DC Axial fan, 614 JH, EBM-PAPST
The 614 JH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation right, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 32 mm | |
| Volume flow | 70 m³/h | |
| Sound pressure level | 53 db | |
| speed | 11700 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 7.7 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
