614 J/2 HHPR-010 | ebm-papst
DC axial fan, 24 V, 60 x 60 x 32 mm, 5.09 m³/h, 43 dB, ball bearing, ebm-papst 614 J/2 HHPR-010
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
44.0538 € *
Available: 74 pcs.
Total Price:
44.05 € *
Price list
Quantity
Price per unit*
1 pcs.
44.0538 €
5 pcs.
42.1379 €
10 pcs.
40.3767 €
25 pcs.
38.7702 €
*incl. VAT plus shipping costs
Subject to prior sale

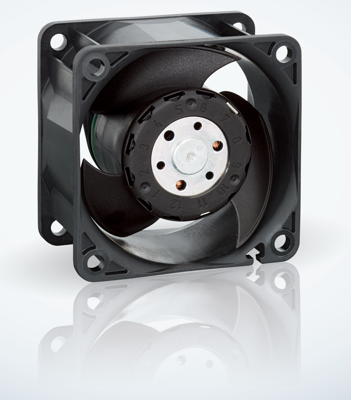

DC Axial fan, 614 J/2 HHPR-010, EBM-PAPST
The 614 J/2 HHPR-010 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Insulation diameter 1,45 mm
- Material housing: plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 32 mm | |
| Volume flow | 5.09 m³/h | |
| Sound pressure level | 43 db | |
| Type of bearing | ball bearing | |
| Power consumption | 6 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
