612 NH | ebm-papst

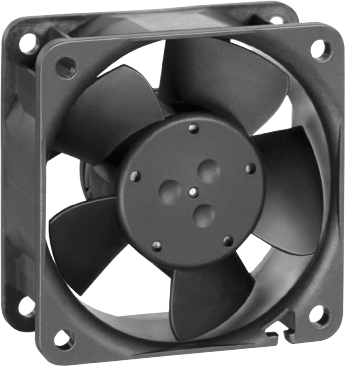

DC axial fan, 12 V, 60 x 60 x 25 mm, 43 m³/h, 37 dB, ball bearing, ebm-papst 612 NH
This item is no longer available.
As an alternative, we recommend the following item:
DC axial fan, 12 V, 60 x 60 x 25 mm, 46 m³/h, 38 dB, ball bearing, ebm-papst 612 NGH
Order No.: 88B808
Manufacturer: ebm-papst
per pc. 25.7635 € *
DC Axial fan, 612 NH, EBM-PAPST
The 612 NH is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation clockwise, viewed toward rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 25 mm | |
| Volume flow | 43 m³/h | |
| Sound pressure level | 37 db | |
| speed | 5600 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 1.8 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
