612 N/2 GML-096 | ebm-papst
DC axial fan, 12 V, 60 x 60 x 25 mm, 23 m³/h, 19 dB, slide bearing, ebm-papst 612 N/2 GML-096
Unit Price (€ / pc.)
26.3942 € *
Standard delivery time from the manufacturer is: 6 Weeks

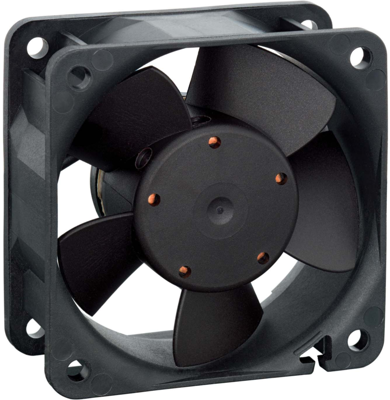

DC Axial fan, 612 N/2 GML-096, EBM-PAPST
The 612 N/2 GML-096 is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Direction of rotation right, viewed on the rotor
- Max. Tightening torque for installation over both stranded design corners 20 Ncm
- Conveying direction blowing over bars
- Impeller material Plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 25 mm | |
| Volume flow | 23 m³/h | |
| Sound pressure level | 19 db | |
| speed | 3000 1/min | |
| Type of bearing | slide bearing | |
| Power consumption | 0.9 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
