612 JH | ebm-papst
DC axial fan, 12 V, 60 x 60 x 32 mm, 70 m³/h, 53 dB, ball bearing, ebm-papst 612 JH
Unit Price (€ / pc.)
31.9753 € *
Standard delivery time from the manufacturer is: 6 Weeks

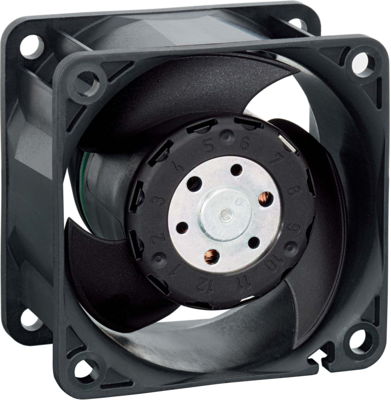

DC Axial fan, 612 JH, EBM-PAPST
The 612 JH is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Protected against reverse polarity and blocking
- Direction of rotation right, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 32 mm | |
| Volume flow | 70 m³/h | |
| Sound pressure level | 53 db | |
| speed | 11700 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 7.7 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
