4658 N | ebm-papst
AC axial fan, 230 V, 119 x 119 x 38 mm, 153 m³/h, 47 dB, ball bearing, ebm-papst 4658 N
Unit Price (€ / pc.)
35.9737 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
35.97 € *
Price list
Quantity
Price per unit*
1 pcs.
35.9737 €
10 pcs.
33.4628 €
*incl. VAT plus shipping costs
Subject to prior sale

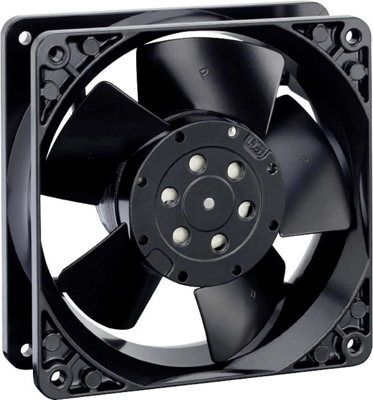

AC Axial fan, 4658 N, EBM-PAPST
The 4658 N is fan with high air flow and minimum noise level. Aerodynamiclly shaped, all metal construction driven by shaded pole motor. External rotor dynamically balanced in two planes 5 fan blades made of sheet steel directly welded to the rotor.
Features
- Overload protection
- Designed for maintenance free continuous operation
- Moisture protection according to IP 20
- Any mounting position
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | AC axial fan | |
| Rated voltage | 230 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 153 m³/h | |
| Sound pressure level | 47 db | |
| speed | 2600 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 29.5 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
