4656 Z | ebm-papst
AC axial fan, 230 V, 119 x 119 x 38 mm, 160 m³/h, 40 dB, ball bearing, ebm-papst 4656 Z
Unit Price (€ / pc.)
59.2025 € *
Available: 48 pcs.
Next delivery: 50 pcs. on 2026-02-02
Total Price:
59.20 € *
Price list
Quantity
Price per unit*
1 pcs.
59.2025 €
5 pcs.
55.0970 €
10 pcs.
49.3850 €
50 pcs.
40.5195 €
*incl. VAT plus shipping costs
Subject to prior sale

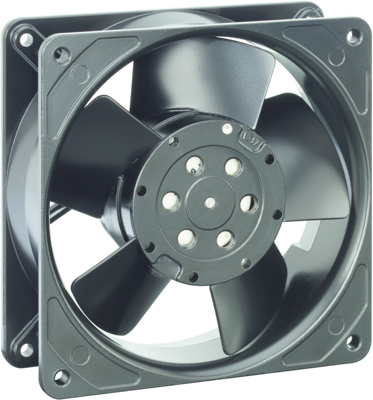

AC Axial fan, 4656 Z, EBM-PAPST
The 4656 Z is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection 2 flat plugs 2.8 x 0.5 mm
- Protected against overload by impedance protection
- Direction of rotation right, viewed on the rotor
- With protection class: IP54/IP68
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | AC axial fan | |
| Rated voltage | 230 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 160 m³/h | |
| Sound pressure level | 40 db | |
| speed | 2650 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 19 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
