4656 EZ | ebm-papst

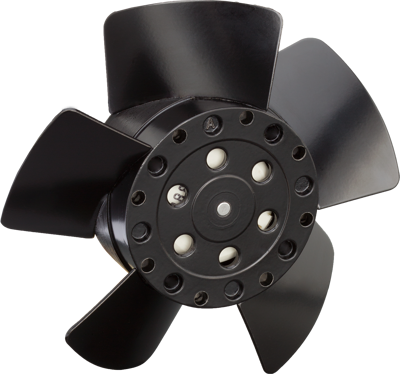

AC axial fan, 230 V, 119 x 119 x 38 mm, 160 m³/h, 40 dB, ball bearing, ebm-papst 4656 EZ

Order No.: 90B224
EAN: 4099889483765
MPN:
4656 EZ
9244014942
Series: 4656 EZ
4656 EZ ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
85.0612 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
85.06 € *
Price list
Quantity
Price per unit*
1 pcs.
85.0612 €
5 pcs.
79.9561 €
15 pcs.
76.8978 €
50 pcs.
73.4944 €
150 pcs.
70.4361 €
*incl. VAT plus shipping costs
Subject to prior sale

AC Axial fan, 4656 EZ, EBM-PAPST

The 4656 EZ axial fan is fan that discharge air along the axis of the fan, i.e. the curved fan blades force the air to move parallel to the shaft around which the fan blades rotate. This fan can produce variable airflow and have higher throughput than centrifugal fan.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • With protection class: IP54/IP68
  • Insulation diameter 1,3 mm
Technical specifications
Version AC axial fan
Rated voltage 230 V
Width 119 mm
Height 119 mm
Depth 38 mm
Volume flow 160 m³/h
Sound pressure level 40 db
speed 2650 1/min
Type of bearing ball bearing
Power consumption 19 W
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
