4650 N-465 LÜSTERKLEMME/8XM04 | ebm-papst

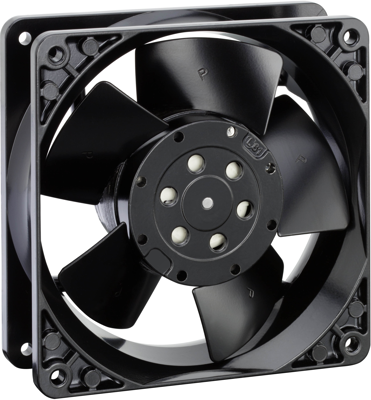

AC axial fan, 230 V, 119 x 119 x 38 mm, 157.7 m³/h, 46 dB, ball bearing, ebm-papst 4650 N-465 LÜSTERKLEMME/8XM04

Order No.: 90B141
EAN: 4099889481334
MPN:
4650 N-465 LÜSTERKLEMME/8XM04
9274014465
Series: 4000 N
4650 N-465 LÜSTERKLEMME/8XM04 ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
58.6670 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
58.67 € *
Price list
Quantity
Price per unit*
1 pcs.
58.6670 €
2 pcs.
56.8225 €
5 pcs.
52.9550 €
*incl. VAT plus shipping costs
Subject to prior sale

AC Axial fan, 4650 N-465 LUSTER TERMINAL/8XM04, EBM-PAPST

The 4650 N-465 LUSTER TERMINAL/8XM04 axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • Wire outlet corner 190 Ncm
  • With protection class: IP54/IP68
Technical specifications
Filter Property Value
Version AC axial fan
Rated voltage 230 V
Width 119 mm
Height 119 mm
Depth 38 mm
Volume flow 157.7 m³/h
Sound pressure level 46 db
speed 2680 1/min
Type of bearing ball bearing
Power consumption 18 W
Logistics
Property Value
Country of origin CN
Customs tariff number 84145925
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
