4418 ML | ebm-papst

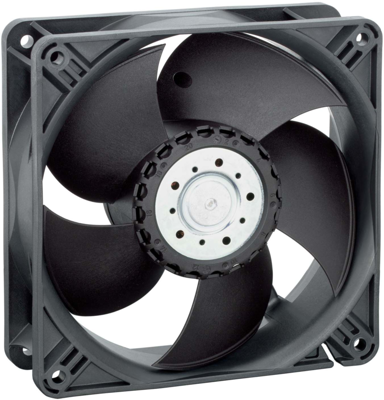

DC axial fan, 48 V, 119 x 119 x 38 mm, 168 m³/h, 40 dB, ball bearing, ebm-papst 4418 ML
Unit Price (€ / pc.)
36.4735 € *
Standard delivery time from the manufacturer is: 8 Weeks
DC Axial fan, 4418 ML, EBM-PAPST
The 4418 ML axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Connection cable single strand AWG 24, TR 64, stripped and tinned
- Electronic commutation completely integrated
- Direction of rotation right, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 48 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 168 m³/h | |
| Sound pressure level | 40 db | |
| speed | 3000 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 3 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
