4414 H | ebm-papst

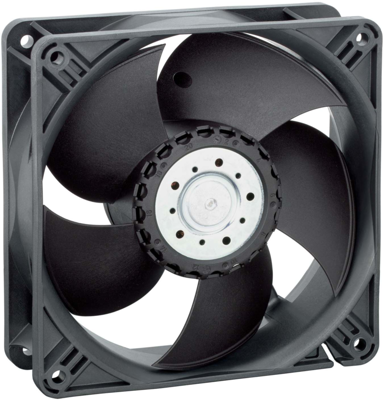

DC axial fan, 24 V, 119 x 119 x 38 mm, 240 m³/h, 50 dB, ball bearing, ebm-papst 4414 H
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
40.2815 € *
Available: 115 pcs.
Total Price:
40.28 € *
Price list
Quantity
Price per unit*
1 pcs.
40.2815 €
5 pcs.
38.5322 €
10 pcs.
36.9257 €
25 pcs.
35.4501 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 4414 H, EBM-PAPST
The 4414 H is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Reversed polarity protection Rectifying diode
- Locked rotor protection Auto restart
- Optimal operating point 148,0 m3/h @ 60 Pa
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 240 m³/h | |
| Sound pressure level | 50 db | |
| speed | 4300 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 8 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
