4414 FNN | ebm-papst
DC axial fan, 24 V, 119 x 119 x 25 mm, 200 m³/h, 52 dB, ball bearing, ebm-papst 4414 FNN
Unit Price (€ / pc.)
52.1101 € *
Standard delivery time from the manufacturer is: 7 Weeks

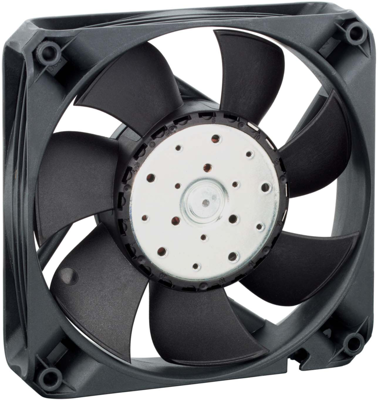

DC Axial fan, 4414 FNN, EBM-PAPST
The 4414 FNN is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Reversed polarity protection Rectifying diode
- Locked rotor protection Auto restart
- Optimal operating point 150,0 m³/h @ 53 Pa
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 25 mm | |
| Volume flow | 200 m³/h | |
| Sound pressure level | 52 db | |
| speed | 4850 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 8 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
