4414/2 HHP | ebm-papst

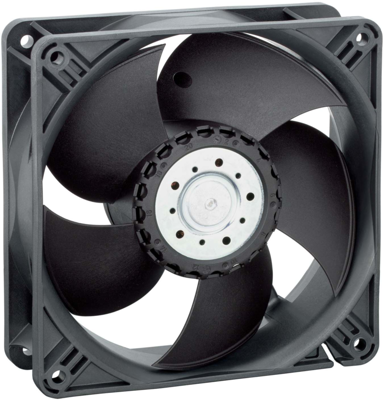

DC axial fan, 24 V, 119 x 119 x 38 mm, 285 m³/h, 55 dB, ball bearing, ebm-papst 4414/2 HHP
Unit Price (€ / pc.)
46.291 € *
Next delivery: 100 pcs. on 2025-12-17
Total Price:
46.29 € *
Price list
Quantity
Price per unit*
1 pcs.
46.291 €
5 pcs.
42.959 €
10 pcs.
39.865 €
25 pcs.
36.176 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 4414/2 HHP, EBM-PAPST
The 4414/2 HHP is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 80 Ncm
- Insulation diameter 1,10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 285 m³/h | |
| Sound pressure level | 55 db | |
| speed | 5000 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 12 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
