4318 NN | ebm-papst

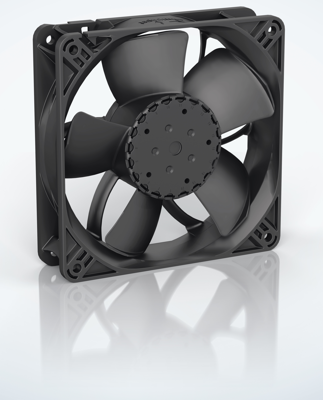

DC axial fan, 48 V, 119 x 119 x 32 mm, 190 m³/h, 43 dB, ball bearing, ebm-papst 4318 NN

Order No.: 90B161
EAN: 4099889481785
MPN:
4318 NN
9293510723
Series: 4300 N
4318 NN ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
52.3362 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
52.34 € *
Price list
Quantity
Price per unit*
1 pcs.
52.3362 €
2 pcs.
51.2890 €
5 pcs.
48.7186 €
10 pcs.
44.3394 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 4318 NN, EBM-PAPST

The 4318 NN axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.

Features

  • Connection via single stranded wires AWG 24, TR 64, absolute and tinned
  • Direction of rotation right, viewed on the rotor
  • Dynamic balancing in two planes according to DIN ISO 1940
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Version DC axial fan
Rated voltage 48 V
Width 119 mm
Height 119 mm
Depth 32 mm
Volume flow 190 m³/h
Sound pressure level 43 db
speed 2700 1/min
Type of bearing ball bearing
Power consumption 4.3 W
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
