4314 NM | ebm-papst

DC axial fan, 24 V, 119 x 119 x 32 mm, 150 m³/h, 36 dB, ball bearing, ebm-papst 4314 NM

Order No.: 90B189
EAN: 4099889482782
MPN:
4314 NM
9293510713
Series: 4300 N

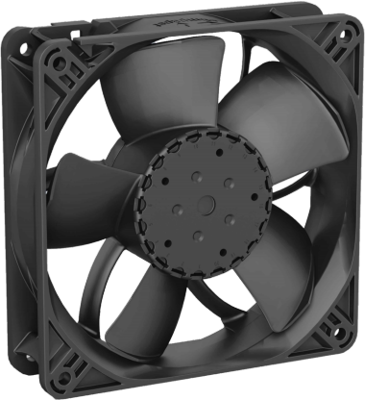

4314 NM ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
40.9360 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
40.94 € *
Price list
Quantity
Price per unit*
1 pcs.
40.9360 €
5 pcs.
38.1395 €
10 pcs.
35.4620 €
25 pcs.
32.9987 €
*incl. VAT plus shipping costs
Subject to prior sale

DC Axial fan, 4314 NM, EBM-PAPST

The 4314 NM axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.

Features

  • Connection cable via single strands AWG 24, TR 64
  • Direction of rotation right, viewed on the rotor
  • Dynamic balancing in two planes according to DIN ISO 1940
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Version DC axial fan
Rated voltage 24 V
Width 119 mm
Height 119 mm
Depth 32 mm
Volume flow 150 m³/h
Sound pressure level 36 db
speed 2100 1/min
Type of bearing ball bearing
Power consumption 2.4 W
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
