4314 NGL | ebm-papst

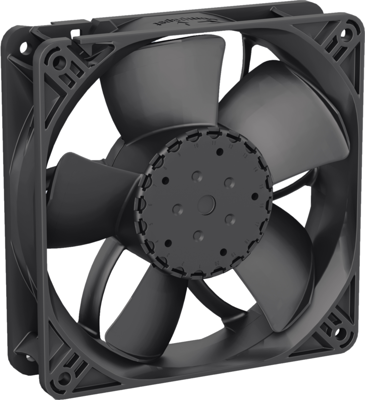

DC axial fan, 24 V, 119 x 119 x 32 mm, 93 m³/h, 27 dB, ball bearing, ebm-papst 4314 NGL
Order No.: 88B9610
EAN: 4099889479898
MPN:
4314 NGL
This item is no longer available.
As an alternative, we recommend the following item:
DC axial fan, 24 V, 119 x 119 x 32 mm, 100 m³/h, 25 dB, ball bearing, ebm-papst 4314 NL
Order No.: 90B202
Manufacturer: ebm-papst
per pc. 70.6503 € *
DC Axial fan, 4314 NGL, EBM-PAPST
The 4314 NGL axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Connection via single stranded wires AWG 22, TR 64, absolute and tinned
- Electronic commutation completely integrated
- Protected against polarity reversal and blocking
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 32 mm | |
| Volume flow | 93 m³/h | |
| Sound pressure level | 27 db | |
| speed | 3150 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 1.2 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
