4312 N/17 NT | ebm-papst
DC axial fan, 12 V, 119 x 119 x 32 mm, 187 m³/h, 45 dB, ball bearing, ebm-papst 4312 N/17 NT
Unit Price (€ / pc.)
97.6276 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
97.63 € *
Price list
Quantity
Price per unit*
1 pcs.
97.6276 €
5 pcs.
91.7728 €
*incl. VAT plus shipping costs
Subject to prior sale

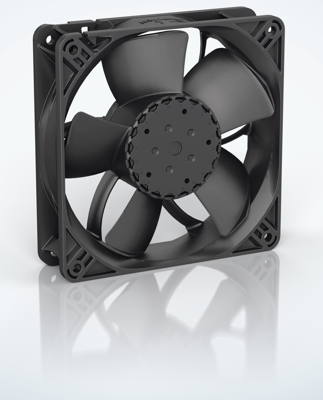

DC Axial fan, 4312 N/17 NT, EBM-PAPST
The 4312 N/17 NT axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 80 Ncm
- Insulation diameter 1,1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 119 mm | |
| Volume flow | 187 m³/h | |
| Type of bearing | ball bearing | |
| speed | 2700 1/min | |
| Rated voltage | 12 V | |
| Version | DC axial fan | |
| Height | 119 mm | |
| Sound pressure level | 45 db | |
| Depth | 32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
