414/2 | ebm-papst

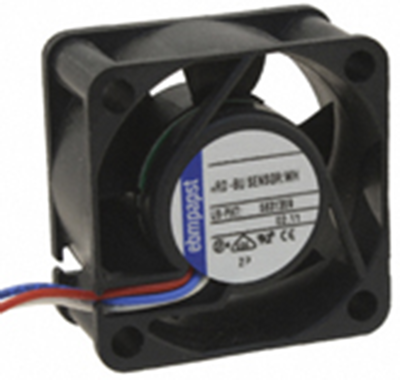

DC axial fan, 24 V, 40 x 40 x 20 mm, 10 m³/h, 18 dB, sintec slide bearing, ebm-papst 414/2
Unit Price (€ / pc.)
41.2335 € *
Available: 51 pcs.
Total Price:
41.23 € *
Price list
Quantity
Price per unit*
1 pcs.
41.2335 €
5 pcs.
38.7583 €
15 pcs.
37.2827 €
50 pcs.
35.6286 €
150 pcs.
34.1411 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 414/2, EBM-PAPST
The 414/2 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Speed proportional square wave signal for external speed monitoring of the fan motor
- 2 pulses per revolution
- Stranded wire connection
- Very wide operating voltage range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 40 mm | |
| Height | 40 mm | |
| Depth | 20 mm | |
| Volume flow | 10 m³/h | |
| Sound pressure level | 18 db | |
| speed | 6000 1/min | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 1 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
