412 | ebm-papst
DC axial fan, 12 V, 40 x 40 x 20 mm, 10 m³/h, 18 dB, sintec slide bearing, ebm-papst 412
Unit Price (€ / pc.)
27.0249 € *
Available: 28 pcs.
Total Price:
27.02 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0249 €
10 pcs.
25.1328 €
25 pcs.
23.1217 €
50 pcs.
21.0392 €
*incl. VAT plus shipping costs
Subject to prior sale

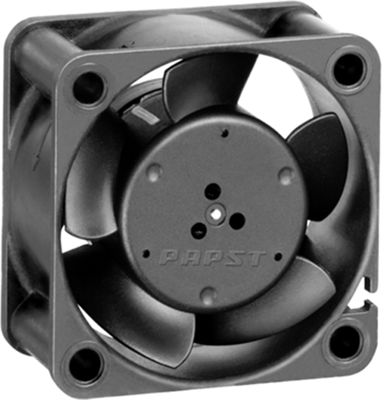

DC Axial fan, 412, EBM-PAPST
The axial fan 412 is suitable for high air flow rates at medium pressure build-up. The air is moved through the fan blades parallel to the rotational axis. Compact, quiet and highly efficient, the energy-saving fan adapt to cooling needs and can be intelligently networked with the device logic.
Features
- Connection via single strands AWG 28, TR 64, bared and tin-plated
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 40 mm | |
| Height | 40 mm | |
| Depth | 20 mm | |
| Volume flow | 10 m³/h | |
| Sound pressure level | 18 db | |
| speed | 6000 1/min | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 800 mW |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
