3656 | ebm-papst
AC axial fan, 230 V, 92 x 92 x 38 mm, 75 m³/h, 37 dB, ball bearing, ebm-papst 3656
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
62.4750 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
62.48 € *
Price list
Quantity
Price per unit*
1 pcs.
62.4750 €
2 pcs.
60.9280 €
5 pcs.
56.6440 €
10 pcs.
53.8475 €
*incl. VAT plus shipping costs
Subject to prior sale

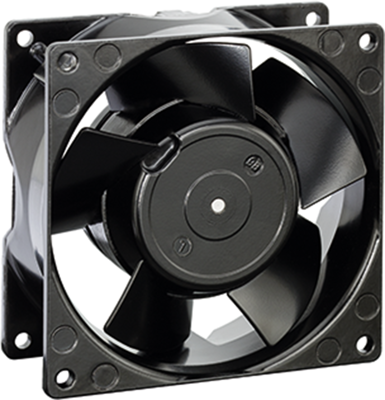

AC Axial fan, 3656, EBM-PAPST
The axial fan 3656 is suitable for high air flow rates at medium pressure build-up. The air is moved through the fan blades parallel to the rotational axis. Compact, quiet and highly efficient, the energy-saving fan adapt to cooling needs and can be intelligently networked with the device logic.
Features
- Connection cable via 2 single strands
- Direction of rotation right, viewed on the rotor
- Housing material made of die-cast aluminum
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | AC axial fan | |
| Rated voltage | 230 V | |
| Width | 92 mm | |
| Height | 92 mm | |
| Depth | 38 mm | |
| Volume flow | 75 m³/h | |
| Sound pressure level | 37 db | |
| speed | 2700 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 12 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
