3414 N/2 GH | ebm-papst
DC axial fan, 24 V, 92 x 92 x 25 mm, 94 m³/h, 37 dB, slide bearing, ebm-papst 3414 N/2 GH
Unit Price (€ / pc.)
58.0244 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
58.02 € *
Price list
Quantity
Price per unit*
1 pcs.
58.0244 €
5 pcs.
54.5377 €
15 pcs.
52.4671 €
50 pcs.
50.1347 €
150 pcs.
48.0522 €
*incl. VAT plus shipping costs
Subject to prior sale

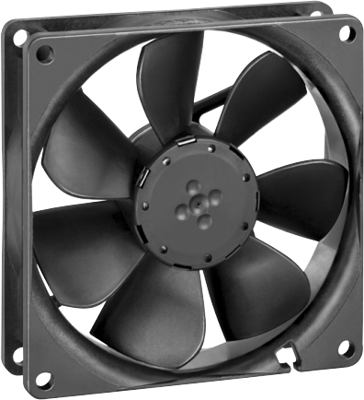

DC Axial fan, 3414 N/2 GH, EBM-PAPST
The 3414 N/2 GH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Connection via single strands AWG 24, TR 64, bared and tin-plated
- Protected against reverse polarity and blocking
- Direction of rotation left, viewed on the rotor
- With protection class: IP54/IP68
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 92 mm | |
| Height | 92 mm | |
| Depth | 25 mm | |
| Volume flow | 94 m³/h | |
| Sound pressure level | 37 db | |
| speed | 3600 1/min | |
| Type of bearing | slide bearing | |
| Power consumption | 3 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
