3412N/2 GLLE-453 | ebm-papst

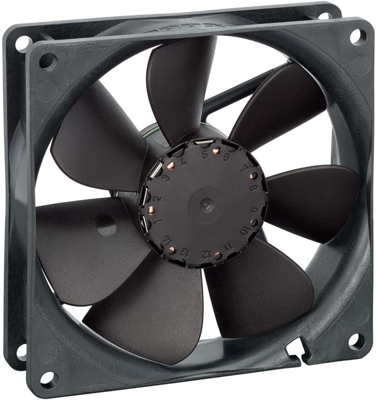

DC axial fan, 12 V, 92 x 92 x 25.4 mm, 36 m³/h, 12 dB, ball bearing, ebm-papst 3412N/2 GLLE-453
Unit Price (€ / pc.)
27.4652 € *
Standard delivery time from the manufacturer is: 6 Weeks
DC Axial fan, 3412N/2 GLLE-453, EBM-PAPST
The 3412N/2 GLLE-453 is a compact, quiet and efficient this not only saves energy, but also means less self-heating of the motor. The bearing system in particular reacts positively to the low self-heating the reason why the fan can achieve up to 85% longer service life.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Protected against blocking
- Material housing: plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 92 mm | |
| Height | 92 mm | |
| Depth | 25.4 mm | |
| Volume flow | 36 m³/h | |
| Sound pressure level | 12 db | |
| speed | 1150 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 0.42 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
