3312 NN | ebm-papst

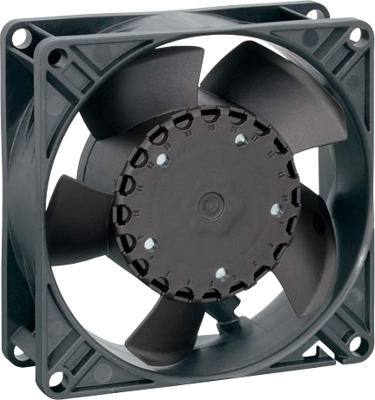

DC axial fan, 12 V, 92 x 92 x 32 mm, 80 m³/h, 35 dB, ball bearing, ebm-papst 3312 NN
Unit Price (€ / pc.)
62.5226 € *
Available: 1 pcs.
Total Price:
62.52 € *
Price list
Quantity
Price per unit*
1 pcs.
62.5226 €
5 pcs.
58.7741 €
15 pcs.
56.5250 €
50 pcs.
54.0260 €
150 pcs.
51.7650 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 3312 NN, EBM-PAPST
The 3312 NN is an axial fan, that is designed to be space-saving, robust and efficient. It is equipped with an electronically commutated external rotor motor.
Features
- Housing GRP1
- Direction of rotation right, viewed on the rotor
- Connection via single strands AWG 24 UL 1061, TR 64
- Moisture protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 92 mm | |
| Height | 92 mm | |
| Depth | 32 mm | |
| Volume flow | 80 m³/h | |
| Sound pressure level | 35 db | |
| speed | 2650 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 1.7 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
