3258 J/2H3P | ebm-papst
DC axial fan, 48 V, 92 x 92 x 38 mm, 270 m³/h, 63 dB, ball bearing, ebm-papst 3258 J/2H3P
Unit Price (€ / pc.)
88.5836 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
88.58 € *
Price list
Quantity
Price per unit*
1 pcs.
88.5836 €
5 pcs.
83.2643 €
*incl. VAT plus shipping costs
Subject to prior sale

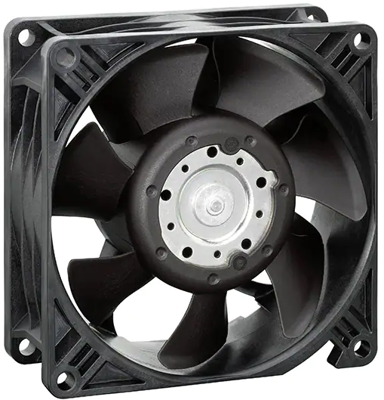

DC Axial fan, 3258 J/2H3P, EBM-PAPST
The 3258 J/2H3P is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Connection via single strands AWG 22, TR 64, bared and tin-plated
- Direction of rotation right, viewed on the rotor
- Conveying direction blowing over bars
- Material housing: glass fiber reinforced plastic (PBT)

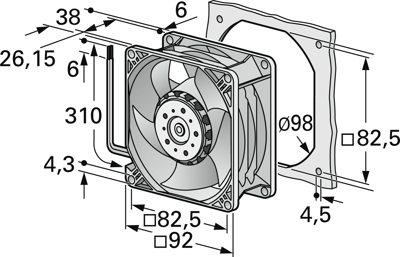

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 48 V | |
| Width | 92 mm | |
| Height | 92 mm | |
| Depth | 38 mm | |
| Volume flow | 270 m³/h | |
| Sound pressure level | 63 db | |
| speed | 7450 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 34.3 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
