3214 JH3 | ebm-papst

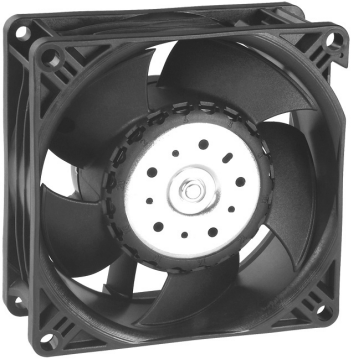

DC axial fan, 24 V, 92 x 92 x 38 mm, 237 m³/h, 69 dB, ball bearing, ebm-papst 3214 JH3
Unit Price (€ / pc.)
77.3381 € *
Available: 3 pcs.
Total Price:
77.34 € *
Price list
Quantity
Price per unit*
1 pcs.
77.3381 €
5 pcs.
72.6971 €
15 pcs.
69.9125 €
50 pcs.
66.8304 €
150 pcs.
64.0339 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 3214 JH3, EBM-PAPST
The 3214 JH3 is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Connection via single strands AWG 24, TR 64, bared and tin-plated
- Airflow direction air outlet over struts
- Motor protection electronic reverse-polarity, locked-rotor, and overload protection
- With protection class: IP54/IP68
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |

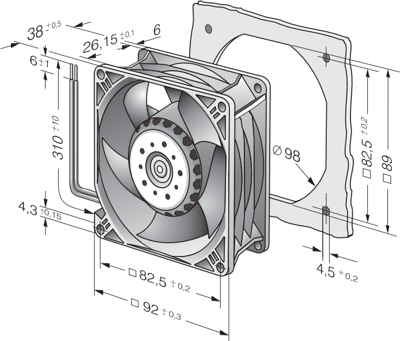

| Width | 92 mm | |
| Height | 92 mm | |
| Depth | 38 mm | |
| Volume flow | 237 m³/h | |
| Sound pressure level | 69 db | |
| speed | 11000 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 30 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
