255 H | ebm-papst
DC axial fan, 5 V, 25 x 25 x 8 mm, 4.5 m³/h, 23 dB, sintec slide bearing, ebm-papst 255 H
Unit Price (€ / pc.)
23.0860 € *
Available: 1 pcs.
Next delivery: 50 pcs. on 2025-12-11
Total Price:
23.09 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0860 €
10 pcs.
21.2415 €
*incl. VAT plus shipping costs
Subject to prior sale

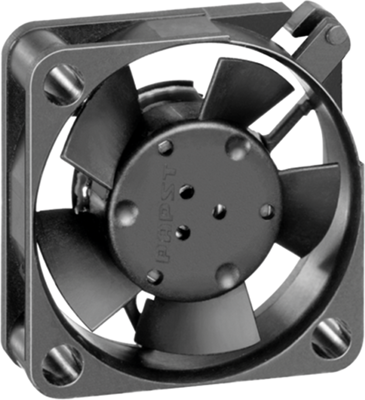

DC Axial fan, 255 H, EBM-PAPST
The 255 H is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Housing GRP1
- Connection via single strands AWG 28, TR 64, bared and tin-plated
- Direction of rotation clockwise, viewed toward rotor
- Protection against moisture

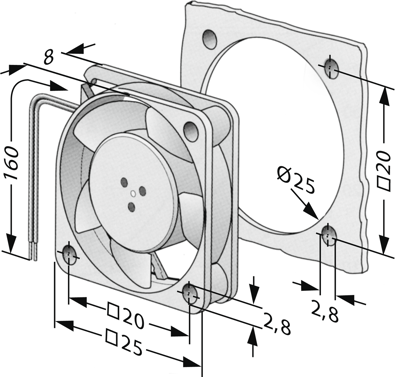

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 5 V | |
| Width | 25 mm | |
| Height | 25 mm | |
| Depth | 8 mm | |
| Volume flow | 4.5 m³/h | |
| Sound pressure level | 23 db | |
| speed | 12000 1/min | |
| Type of bearing | sintec slide bearing | |
| Power consumption | 0.6 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
