856519140000 | Eberle
Dimmer switches, 856519140000
Order No.: 06N247
EAN: 4017254114038
MPN:
856519140000
DÄ-F 565 19
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
88.7502 € *
Standard delivery time from the manufacturer is: On Request

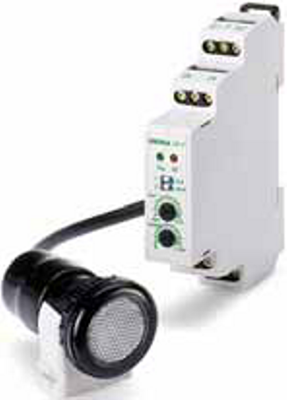

Photoelectric switches, type Eberle DÄ-F 56519.
With remote sensor, can be installed on mounting rails; Features: adjustable from 1.0 to 100 Lux or 100 to 50000 Lux. 12 to 240 V AC/DC (50/60 Hz). 1 x changeover contact, electrically isolated, 16 A. Adjustable On/Off delay from 10 s to 2.0 minutes. Degree of protection: housing IP 40 and sensor IP 55. 2 status lamps. The Remote sensor is supplied without connecting cable. Using a 2 x 0.75 mm² cable, device can be connected at a distance of max. 50. Supplied with mounting clip for remote sensors.
Type: DÄ-F 56519, photoelectric switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | twilight switch | |
| Number of channels | 1 | |
| Assembly | DIN rail | |
| Display | No | |
| Rated voltage | 230 V | |
| Breaking capacity | 4000 VA | |
| Degree of protection (IP) | IP55 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
