053053649001 | Eberle
Clock generator, 0.05 s to 100 h, 1 Form C (NO/NC), 24-240 VDC, 5 A/250 VAC, 053053649001

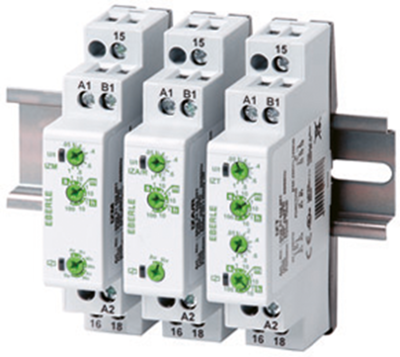

Installation timer relays, type Eberle IZ.
For DIN rail mounting. Continuous function monitoring by switching status indicators for the output relay (1 electrically isolated changeover contact) and for the operating voltage (indicator flashes while time is elapsing). Enduring control contact for switching parallel loads such as contactors, relays or pilot lamps; Time range: 0.05 s to 100 h. Operating voltage: 12 to 240 V AC/DC (IZM), 24 to 240 V AC/DC (IZA/R and IZT). Frequency: 48 to 63 Hz. Switching voltage/current: max. 250 VAC/5.0 A with clearance > 5.0 mm (for in-line installation without clearance: 3.0 A). Minimum switching current: 100 mA. Rated consumption: 3.0 VA (1.6 W). Duty cycle: 100 %. Operating temperatures: –25 to +55 °C. Dimensions: W 17.5, H 87, D 63 mm.
Clock generator relay, type IZT.
The pulse and pause duration can be set separately, with selectable pulse or pause trigger. For applications requiring asymmetric pulse/pause ratios, e.g. motion sequences, dosing equipment, pump controls, etc.
Type: IZT, clock generator relay
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Time display | 0.05 s to 100 h | |
| Breaking capacity | 5 A/250 VAC | |
| Voltage | 24-240 VDC |
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364900 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
