517190151100 | Eberle

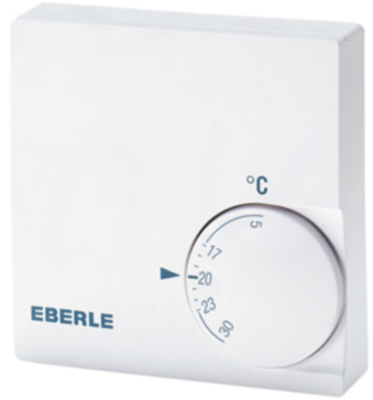

Thermostat, 230 VAC, 5 to 30 °C, white, 517190151100
Order No.: 06N5154
EAN: 4017254157646
MPN:
517190151100
Unit Price (€ / pc.)
77.5880 € *
Standard delivery time from the manufacturer is: 3 Weeks
Room controller, noiseless for wall mounting. Suitable for the control of hot water, convector or floor heating in conjunction with electrothermal actuators. By using a triac switch completely noiseless, unlike relays or bimetal. Switchable for actuators de-energized open or de-energized closed, therefore usable for heating or cooling. Connection of a remote sensor is possible. Improved control characteristics by pulse width modulation. Range narrowing in the setting knob as a heating cost brake. Temperature reduction via external timer possible. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 230 VAC | |
| max. operating temperature | 30 °C | |
| Assembly | wall mounting | |
| min. operating temperature | 5 °C | |
| Degree of protection (IP) | IP30 | |
| Colour | white | |
| Version | room temperature controller |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90321020 |
