101110451102 | Eberle

Thermostat, 230 VAC, 5 to 30 °C, white, 101110451102

Order No.: 06N8022
EAN: 4017254105487
MPN:
101110451102
RTR-E 3502
101110451102 Eberle Detectors, Controller
Image may differ
Unit Price (€ / pc.)
42.4830 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1,062.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
42.4830 €

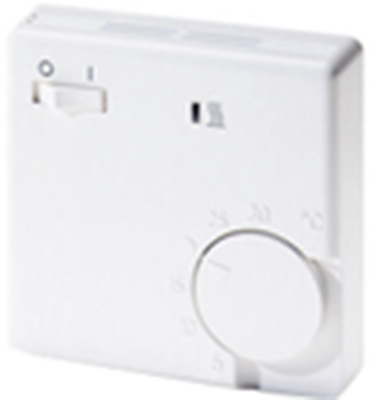

Room thermostats, type Eberle RTR-E 3000.

With thermal feedback; Mounting: surface, directly onto the flush outlet, or on DIN rail. Operating voltage: 230 VAC. Temperature range: +5.0 to +30 °C. Contacts: 1 NC. Degree of protection: IP 30 safety insulation. Dimensions: 75 x 75 x 25.5 mm.

Type RTR-E 3502.

With ON/OFF mains switch and Heating ON indicator lamp; Switching current: AC 10 mA to 16 (4) A, DC 100 W.

Type: 101 1104 51 102, room thermostat

Technical specifications
Filter Property Value
Colour white
Degree of protection (IP) IP30
Assembly wall mounting
Version room temperature controller
Voltage 230 VAC
min. operating temperature 5 °C
max. operating temperature 30 °C
Logistics
Property Value
Country of origin DE
Customs tariff number 90321080
