053720141900 | Eberle

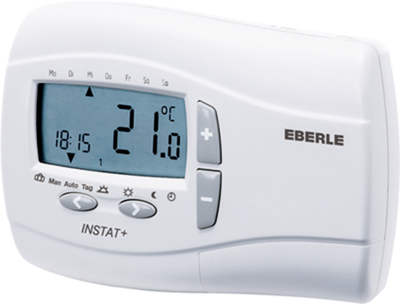

Floor heating controller, 230 VAC, 7 to 32 °C, white, 053720141900
Thermostat timers, type Eberle INSTAT+.
Functions: holiday and party function, selectable programs (all days the same, weekdays/off-days, daily individually), variable switching times (2, 4, 6), security against unauthorized access, adaptable temperature display, changeover of effective direction for heating/cooling, anti-freeze function, access protection/child protection. Rated voltage: 230 VAC/50 Hz. Switching current: 10 mA to 16 (2) A. Output: relay with CO contact, electrically isolated. Output signal: pulse width modulation (PWM). Switching time: 1.0 min. Degree of protection: IP 30. Safety class: II. Ambient temperatures: 0 to +40 °C. Ambient humidity: 25 to 85 %.
For under floor and convector heating systems, type INSTAT+ 3R.
Temperature settings: +7.0 to +32 °C.
Type: 0537 20 141 900, thermostat timer
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Degree of protection (IP) | IP30 | |
| max. operating temperature | 32 °C | |
| min. operating temperature | 7 °C | |
| Version | floor heating controller | |
| Voltage | 230 VAC |
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 90321020 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
