048111051015 | Eberle

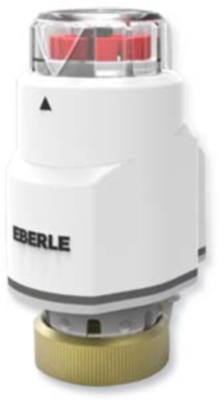

Actuator thermal, 230 VAC, 0 to 60 °C, white, 048111051015
Order No.: 06N5049
EAN: 4017254163814
MPN:
048111051015
The powerful TS Ultra Plus is an actuator (normally closed) robust and noise-free. The manual adjustment, at the top of the cap, allows easy mounting and emergency operation. 360° status indicator provides information on operating status and stroke position at all times. Suitable for overhead mounting. Due to its width, it can also be used for manifolds with 40 mm valve center distance. Fits all valves with M30 x1.5 mm without adapter. Plug-in cable for uncomplicated mounting and easy replacement. Fast response time, opens by 4 mm in 2 minutes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | actuator thermal | |
| Colour | white | |
| Voltage | 230 VAC | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 60 °C | |
| Degree of protection (IP) | IP55 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84818051 |
| Country of origin | GB |
