049085140000 | Eberle
Installation contactor, 24 A, 440 V, 3 Form A (N/O) + 1 Form B (N/C), coil 230 VAC, 049085140000
Order No.: 06N6862
EAN: 4017254013133
MPN:
049085140000
ISCH 24-3 S/1 Ö
Unit Price (€ / pc.)
45.0534 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
45.05 € *
Price list
Quantity
Price per unit*
1 pcs.
45.0534 €
5 pcs.
43.1018 €
10 pcs.
41.3049 €
*incl. VAT plus shipping costs
Subject to prior sale

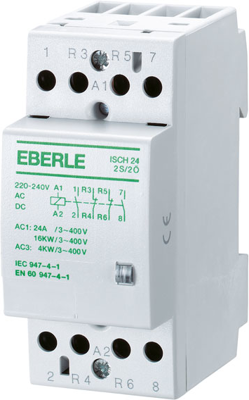

Installation contactors, type Eberle ISCH 24.

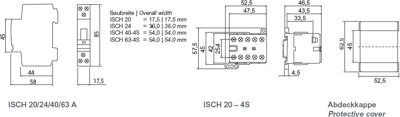

For wall mounting and 35-mm DIN rails. With rectifier (hum-free); Rated current: 24 A. Rated power AC 1: 230 V 1/5.3 kW, 230 V 3/9.0 kW, 400 V 3/16 kW. Rated power AC 3: 230 V 1/1.3 kW, 230 V 3/2.2 kW, 400 V 3/4.0 kW. Rated power consumption of the solenoid for excitation and holding: 4.0 W. Main conductor cross-section: 0.5 to 10/2 x 4.0 mm². Coil: 4.0/2 x 2.5 mm². Dimensions: W 36, H 85, D 58 mm.
Type: ISCH 24, 3 NO + 1 NC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 440 V | |
| Latching switching function | 3 Form A (N/O) + 1 Form B (N/C) | |
| Control Voltage | 230 VAC | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP20 | |
| Version | installation contactor | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
