48435 26001 | EBE

Encoding rotary switch, 10 pole, BCD, 100 mA/30 V AC/DC, 48435 26001

Order No.: 17G353
EAN: 4099889202571
MPN:
48435 26001
SC17-1-54-D-25-A-10-X-AU-1-R
Series: SC 17
48435 26001 EBE Slide Switches and Coding Switches
Image may differ
Unit Price (€ / pc.)
86.9176 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
4,345.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
86.9176 €

Rotary coding switches, type EBE SC 17.

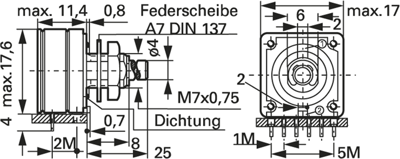

With solid gold contacts and PCB terminals; Version: BCD (10-pole) or hexadecimal code (16-pole), 1 level. Insulation material (level/rotor): mold, high temperature-resistant (Di)/hard fabric (EP). End stops: fixed setting. Solder pins. Bushing mount: M 7 x 0.75. Shaft: D 4.0 mm, L 25 mm, for knob attachment. Breaking capacity: maximum 3.0 VA. Switching voltage: maximum 30 V AC/DC. Switching current: maximum 100 mA. Test voltage: 100 VAC. Contact resistance (rated value): 100 mohm. Capacitance between two contacts: maximum 2.0 pF.

Side adjustment.

Type: BCD code + even parity

Technical specifications
contact surface gold-plated
Coding BCD
Breaking capacity 100 mA/30 V AC/DC
Pin number 10 pole
Version encoding rotary switch
Actuation lateral
Connection PCB pin
Logistics
Country of origin DE
Customs tariff number 85365015
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
