48435 02360 | EBE
Step rotary switches, 4 pole, 6 stage, 30°, short-circuiting, 300 mA, 125 V, 48435 02360
Order No.: 16G294
EAN: 4099889221046
MPN:
48435 02360
SB15-2-2-E-25-A-06-K-DI-AG-1-L-WD
Series: SB15
Unit Price (€ / pc.)
70.2100 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3,510.50 € *
Price list
Quantity
Price per unit*
50 pcs.
70.2100 €
150 pcs.
67.2945 €
*incl. VAT plus shipping costs
Subject to prior sale

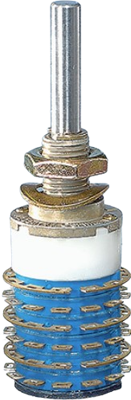

Multistep rotary switches, type EBE SB 15.

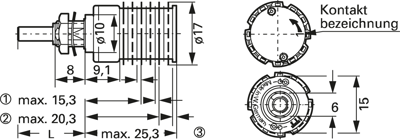

Make before break, compliant with DIN 41634, IEC draft and VG 95318 Part 5. Splashproof. Solder terminals; Contacts: silver. Breaking capacity: max. 10 VA. Switching voltage: max. 125 VAC/150 VDC. Switching current: max. 300 mA. Test voltage: 1000 V. Threaded bush: M7 x 0.75. Shaft diameter: 4.0 mm. Shaft length including the threaded bush: 25 mm (dimension L). Contact banks on diallyl phtalate.
Type: 4 x 6 contacts, 2 contact banks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | short-circuiting | |
| Number of steps | 6 | |
| Rated voltage | 125 V | |
| Switching angle | 30 ° | |
| Connection | solder connection | |
| Pin number | 4 pole | |
| Breaking capacity | 10 VA | |
| Product type | step rotary switches | |
| switching current | 300 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365015 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
