48434 41029 | EBE
Step rotary switches, 4 pole, 3 stage, 30°, On-On-On, interrupting, 130 mA, 150 V, 48434 41029
Order No.: 16G2226
EAN: 4099889220957
MPN:
48434 41029
SB20AD-1-4-E-20-S-03-U-PO-AG-4-P
Series: SB20
Unit Price (€ / pc.)
12.3046 € *
Available: 31 pcs.
Total Price:
12.30 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3046 €
10 pcs.
10.8290 €
30 pcs.
10.0912 €
60 pcs.
9.6509 €
120 pcs.
9.1630 €
*incl. VAT plus shipping costs
Subject to prior sale

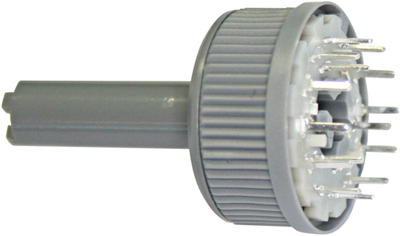

Multistep rotary switches, type EBE SB 20 AD.
Miniature design with break before make action in closed button design. 130 mA at 150 V AC/DC. Silver-plated contacts for PCB mounting, 6.0-mm hollow shaft; Note: index pins are available on separate order.
Type: 4 x 3 contacts, 1 contact bank
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shift position | On-On-On | |
| Switching angle | 30 ° | |
| Breaking capacity | 5 VA | |
| Pin number | 4 pole | |
| Switching Mode | interrupting | |
| Connection | PCB connection | |
| Rated voltage | 150 V | |
| switching current | 130 mA | |
| Product type | step rotary switches | |
| Number of steps | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365015 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
