48434 41027 | EBE

Step rotary switches, 2 pole, 6 stage, 30°, interrupting, 130 mA, 150 V, 48434 41027

Order No.: 16G222
EAN: 4099889220933
MPN:
48434 41027
SB20AD-1-2-E-20-S-06-U-PO-AG-4-P
Series: SB20

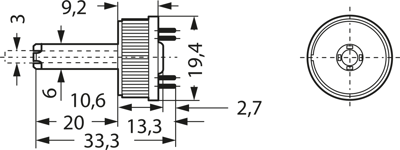

48434 41027 EBE Rotary Switches and Selector Switches Image 1

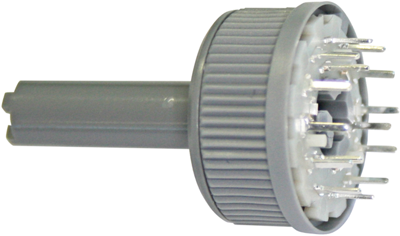

48434 41027 EBE Rotary Switches and Selector Switches Image 2
Image may differ
Unit Price (€ / pc.)
10.0079 € *
Available: 571 pcs.
Total Price:
10.01 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0079 €
10 pcs.
8.8060 €
50 pcs.
8.2110 €
150 pcs.
7.8540 €
500 pcs.
7.4494 €
*incl. VAT plus shipping costs
Subject to prior sale

Multistep rotary switches, type EBE SB 20 AD.

Miniature design with break before make action in closed button design. 130 mA at 150 V AC/DC. Silver-plated contacts for PCB mounting, 6.0-mm hollow shaft; Note: index pins are available on separate order.

Type: 2 x 6 contacts, 1 contact bank

Technical specifications
Filter Property Value
switching current 130 mA
Breaking capacity 5 VA
Connection PCB connection
Switching angle 30 °
Switching Mode interrupting
Pin number 2 pole
Number of steps 6
Product type step rotary switches
Rated voltage 150 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85365015
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
