48434 41026 | EBE

Step rotary switches, 1 pole, 12 stage, 30°, interrupting, 130 mA, 150 V, 48434 41026

Order No.: 16G220
EAN: 4099889220926
MPN:
48434 41026
SB20AD-1-1-E-20-S-12-U-PO-AG-4-P
Series: SB20

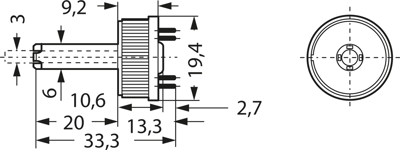

48434 41026 EBE Rotary Switches and Selector Switches Image 1

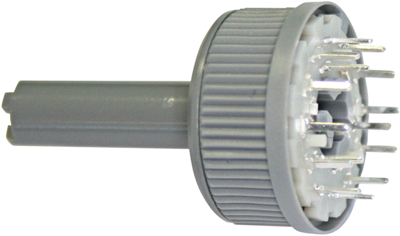

48434 41026 EBE Rotary Switches and Selector Switches Image 2
Image may differ
Unit Price (€ / pc.)
10.3173 € *
Available: 171 pcs.
Total Price:
10.32 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3173 €
10 pcs.
9.0797 €
50 pcs.
8.4609 €
150 pcs.
8.0920 €
500 pcs.
7.6636 €
*incl. VAT plus shipping costs
Subject to prior sale

Multistep rotary switches, type EBE SB 20 AD.

Miniature design with break before make action in closed button design. 130 mA at 150 V AC/DC. Silver-plated contacts for PCB mounting, 6.0-mm hollow shaft; Note: index pins are available on separate order.

Type: 1 x 12 contacts, 1 contact bank

Technical specifications
Switching Mode interrupting
Breaking capacity 5 VA
switching current 130 mA
Product type step rotary switches
Pin number 1 pole
Connection PCB connection
Number of steps 12
Switching angle 30 °
Rated voltage 150 V
Logistics
Country of origin DE
Customs tariff number 85365015
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
