48434 41007 | EBE

Step rotary switches, 2 pole, 6 stage, 30°, interrupting, 130 mA, 150 V, 48434 41007

Order No.: 16G2230
EAN: 4099889220971
MPN:
48434 41007
SB20F-1-2-E-00-X-06-U-AG
Series: SB20

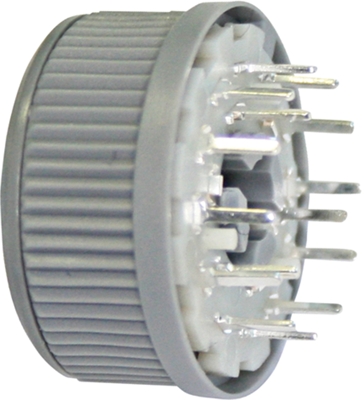

48434 41007 EBE Rotary Switches and Selector Switches Image 1

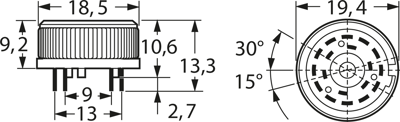

48434 41007 EBE Rotary Switches and Selector Switches Image 2
Image may differ
Unit Price (€ / pc.)
8.8060 € *
Available: 546 pcs.
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8060 €
10 pcs.
7.8064 €
50 pcs.
7.3066 €
150 pcs.
6.9972 €
500 pcs.
6.6759 €
*incl. VAT plus shipping costs
Subject to prior sale

Multistep rotary switches, type EBE SB 20 AD.

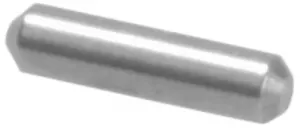

Miniature design with break before make action in closed button design. 130 mA at 150 V AC/DC. Silver-plated contacts for PCB mounting, 6.0-mm hollow shaft; Note: index pins are available on separate order.

Without shaft, type SB 20 F.

With 6.0 mm shaft shoulder.

Type: 2 x 6 contacts, 1 contact bank

Technical specifications
Switching Mode interrupting
Breaking capacity 5 VA
switching current 130 mA
Product type step rotary switches
Pin number 2 pole
Connection PCB connection
Number of steps 6
Switching angle 30 °
Rated voltage 150 V
Logistics
Country of origin DE
Customs tariff number 85365015
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
