KW-5R5C104-R | EATON
SuperCap-Elko 0,1F 5,5V 13,5x8,3mm, KW-5R5C104-R
Unit Price (€ / pc.)
3.4153 € *
Available: 24 pcs.
Available in 5 Days: 225 pcs. - if ordered today
Total Price:
3.42 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4153 €
5 pcs.
3.1535 €
10 pcs.
2.9869 €
25 pcs.
2.8203 €
50 pcs.
2.6894 €
*incl. VAT plus shipping costs
Subject to prior sale

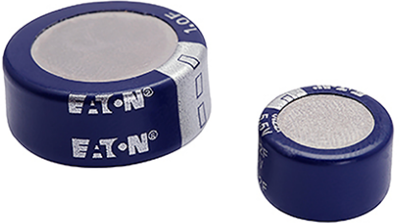

Supercapacitor, KW-5R5C104-R, EATON
This supercapacitor is unique, ultrahigh capacitance devices utilizing electric double layer capacitor (EDLC) construction combined with new, high performance materials. This combination allows to offer a wide variety of capacitor solutions tailored to specific applications that range from a few microamps for several days to several milliamps formilliseconds.
Features
- High specific capacitance
- Low leakage current
- Long cycle life
- Eco-friendly
Applications
- Electric utilitymeters
- Motor control units
- Solar inverters
- Real-Time Clock (RTC) backup
- Programmable Logic Controllers (PLCs)
- Irrigation and water control systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 5.5 V | |
| Tolerance | -20 to 80 % | |
| Design | radial | |
| diameter | 13.5 mm | |
| Height | 8.3 mm | |
| ESR (Equivalent Series Resistance) | 50 Ω | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Capacity | 0.1 F | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
